• Minilay

Transform any concrete floor into a tileable wetroom floor with either a linear or point Minilay Drain Kit. An easy solution for creating a bespoke wetroom sloping floor.

Point and Linear Drain Kits

A Marmox Minilay provides the flexibility and freedom to transform any concrete floor into a tileable wet-room floor. Marmox Minilays come with a choice of 705mm long stainless steel linear grates or with a 120 x 120mm stainless steel square grate.

Both of these drain types are also offered with a standard 3600 Swivel Waste with a flexible outlet (allowing for horizontal or vertical drainage) or the Slimline Waste which is just 6cm deep, which will fit the tightest of spaces, yet without compromising waste flow rate.

Technical data and key information

Material
Plastic with XPS Board
Drain Style
Point or Linear
  • 360 Degree Waste
  • Low Profile Option
  • Point or Linear
  • Easy to you
  • Lightweight

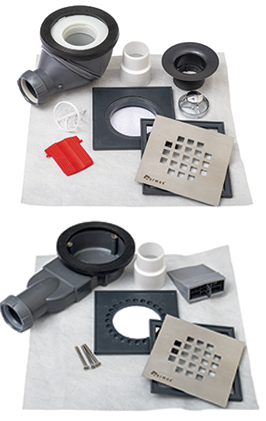

Point Drain

A Marmox Minilay is a drainage waste which has been factory fitted into a height adjustable frame which itself sits within a small rigid board. This small board provides a solid area immediately around the drain from which the shower floor can be continued with the screed.

An overlapping layer of waterproof fleece is also fitted to the top of this board which is used to provide a seamless waterproof junction with the screed.

A choice of waste is available for both types of drain:

3600 Swivel - Where the outlet can be rotated to accommodate horizontal or vertical connection of waste – or anywhere in between.

Low-profile - For those where underfloor space is at a premium, our low-profile Slimline Waste drain will fit the tightest of spaces, yet without compromising waste flow rate.

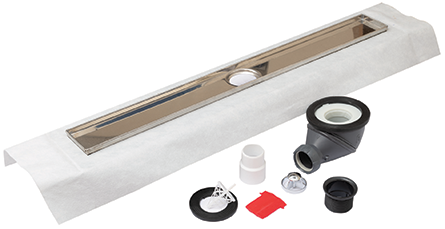

Linear Drain

The Marmox Minilay Linear drain comes complete with a specially designed linear drain. Available options include:

3600 Swivel - Where the outlet can be rotated to accommodate horizontal or vertical connection of waste – or anywhere in between.

Low-profile - For those where underfloor space is at a premium, our low-profile Slimline Waste drain will fit the tightest of spaces, yet without compromising waste flow rate.

Each is a 2 component piece, compromising a choice of drain housing and grate. Choose your grating from the Square, Standard, or Circle design or ask about the Tileable Carrier.

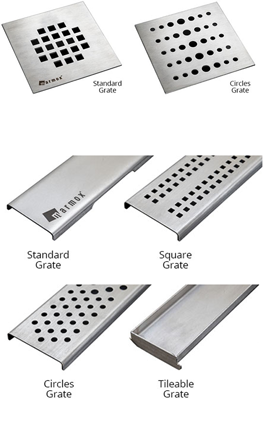

Point Grate Options

Choose your grating from the Square or Circle design.


Linear Grate Options

Choose your grating from the Standard, Square, Circle or Tileable design.
